Chassis: Commercial
Kenworth T480 Chassis
2-Door Regular Cab
Cummins L9 450 HP Engine
Allison EVS 3000 Transmission
Seating: 2-man cab
Front Axle: 14,600 lbs.
Rear Axle: 30,000 lbs.
Product: 2,000 Gal. Tanker
Amdor Roll-up Doors
Internal Right Side Ladder and Pike Pole Storage
Right Side Drop Tank Storage
SCBA Bottle Storage for (4)
Durable Compartment Finish
2100 Gallon Folding Tank
(2) Hard Suction Hoses (6” x 10’)
Vinyl Crosslay Cover and Hosebed Cover

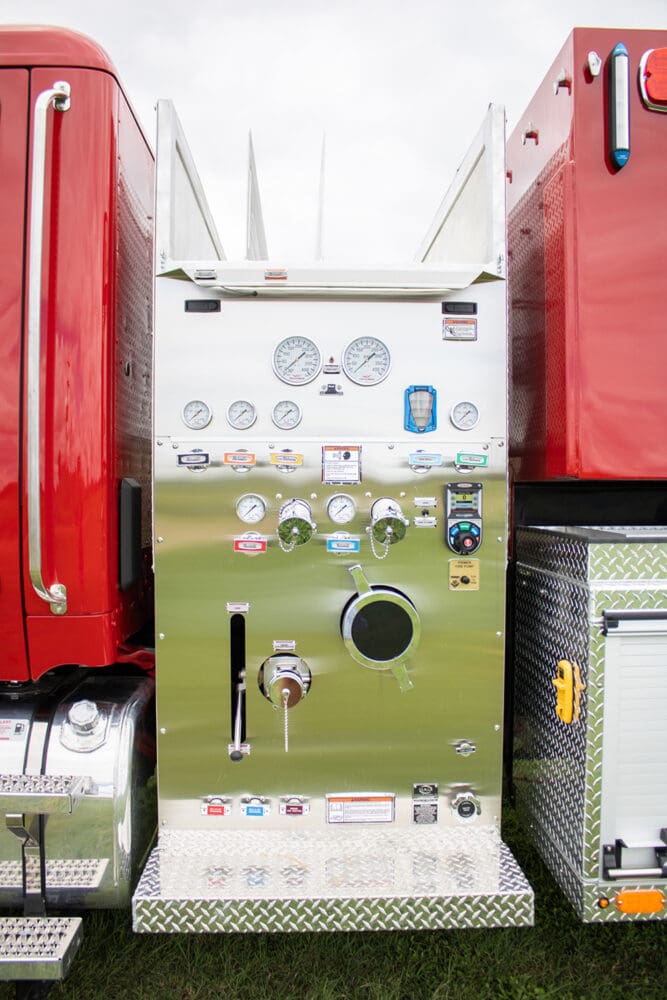

Hale RSD 1500 GPM Pump
2000 Gallons Water
Pump and Roll Capable
(1) 2.5” Left Side Auxiliary Inlet
(2) 2” Left Side Discharge
(1) 2.5” Right Side Discharge
(1) 3” Right Side Discharge
(1) 2.5” Rear Left Side Discharge
(2) 1.75” and (1) 2.5” Preconnects
FRC PumpBoss Pressure Governor
10” Rear Electric Dump with Swivel and Extension
(1) 2.5” and (1) 4” Rear Direct Fireman’s Friend Tank Fill
Whelen Lighting Package
Custom Upfit Capabilities:
Apparatus body and storage upfits
Front bumper configurations
Chassis customizations
Add/omit discharges, reclassify pump GPM if needed
Foam system upgrades or additions
Equipment sales
Lighting and siren updates
Specialty rescue equipment integration (e.g., Hazmat, Technical Rescue)
