Tuxedo Park Fire Department – KME Aerial Cat Tuff Truck Aerial Fire Truck


  • New Fire Apparatus
  • KME
  • Aerial
  • Tuff Truck™ Aerial
  • Red
  • Tuxedo Park, New York, New York
  • Tuxedo Fire Department
  • Marc mazza

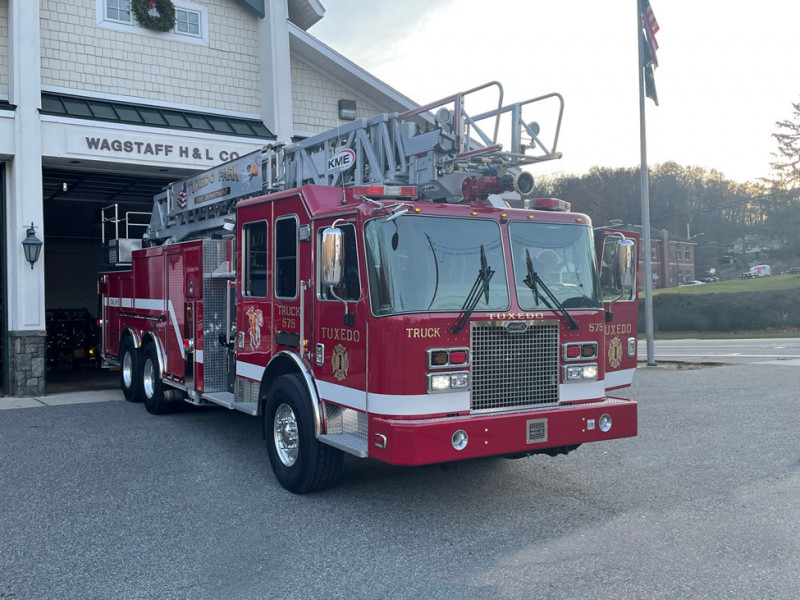

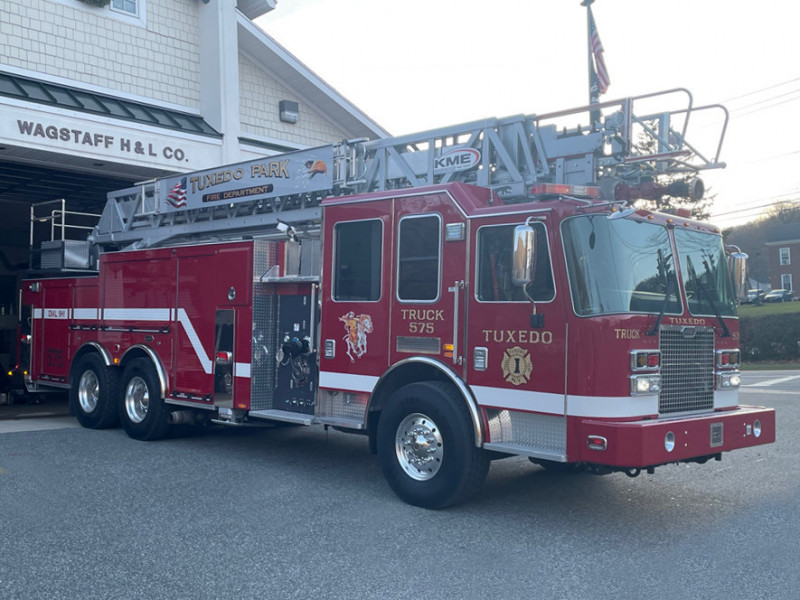

Tuxedo Park  Fire Department has recently taken delivery of a KME Aerial Cat Tuff Truck!  Take a 3D tour and read all the details of this new delivery!

Built to navigate around tight city streets, the KME Tuff Truck takes maximum drivability to a new level with a narrow cab and body width.  Designed with two sets of H-style stabilizers fully extending to only 12′ allows for positioning and unrivaled performance on an 11-degree slope. By integrating mitered corners, the rear tail swing is reduced by 9” and diminishes the possibility of damage to the rear body. KME’s Tuff Truck has an increased water capacity of up to 650 gallons of water and 240 cubic feet of body capacity for enhanced firefighting capability.

CHASSIS
• 96″ Severe Service XMFD Cab with 10″ Raised Roof
• Rolltek Rollover Protection System
• Driver Dash LCD Virtual Display
• Hendrickson Ultimaxx Severe Duty Rubber Suspension
• Electronic Stability Control

DRIVETRAIN
• Cummins ISX 12 500 HP Engine
• Allison 4000 EVS Transmission
• Meritor 22,500 LBS. Front Axle
• Meritor 58,000 LBS. Tandem Rear Axle

BODY
• 3/16″ Aluminum 96″ Wide Tuff Truck Body
• ROM Roll-up Doors with Painted Finish
• Hale QMAX XS 1500 GPM Single Stage Pump
• 650 Gallon UPF Poly IIE Water Tank
• ISO Ground Ladder Compliment

ELECTRICAL
• FRC 360° Camera System
• Class 1 Multiplex System
• HiViz FireTech and FRC LED Scene Light Package

AERIAL
• 103′ 4 Section AerialCat Ladder
• 94′ Horizontal Reach
• 50 mph Wind Load Rating
• 1/4″ Ice on Entire Structure
• -7° to +80° Elevation Range
• 2.5 to 1 Structural Safety Factor
• 500 LBS. Dry Tip Load
• 500 LBS. Wet Tip Load Flowing 1500 GPM
• Two (2) Sets of H Style Stabilizers with 12′ Stance
• Deep Penetrating Stabilizers, 11° Leveling Capability

DIMENSIONS
• Overall Height: 138” (11′-6″)
• Overall Length: 460” (38′-4″)
• Wheelbase: 227”

Congratulations to Tuxedo Park Fire Department on the delivery of their new KME Tuff Truck, and thank you for working with Bulldog Fire Apparatus!
