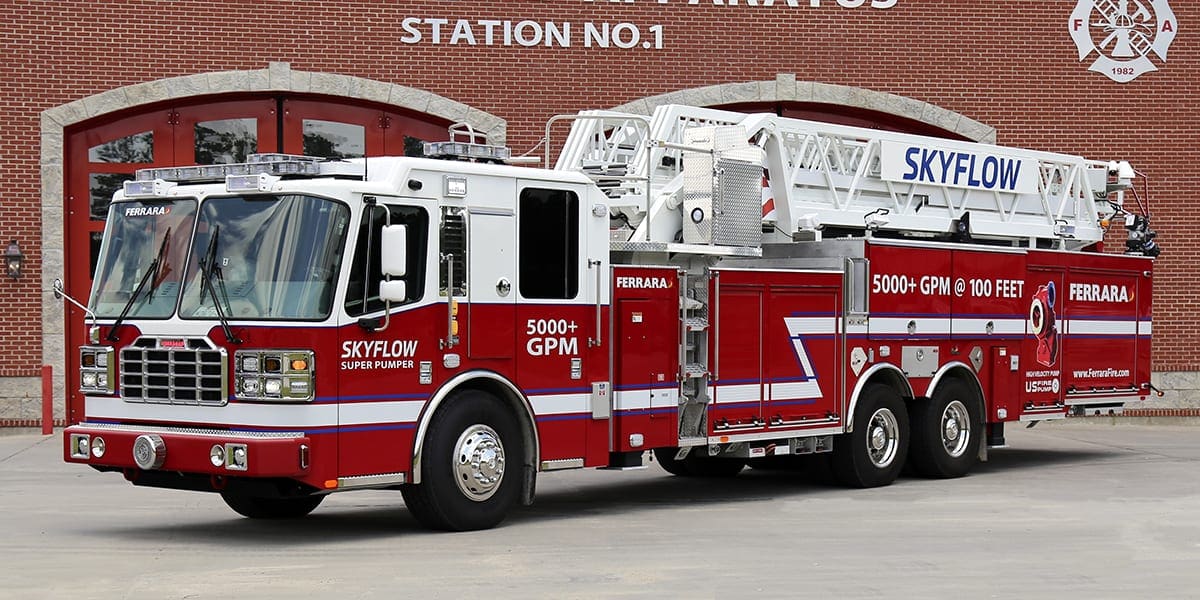

Industrial Skyflow SP-100 Ladder
The Ferrara Industrial Skyflow SP-100 Ladder Fire Truck provides over-the-top applications and vertical reach for your department, especially when in high flow. Through an aerial device, the Skyflow SP-100 gives emergency response teams a flow capability of over 5000 gpm. On top of all this, this ladder fire truck still has reserve capacity with the US Fire Pump HPV pump system when supplied from a pressurized source.
Features and Options
8” direct aerial inlet feed
Class 1 Total Vision aerial display

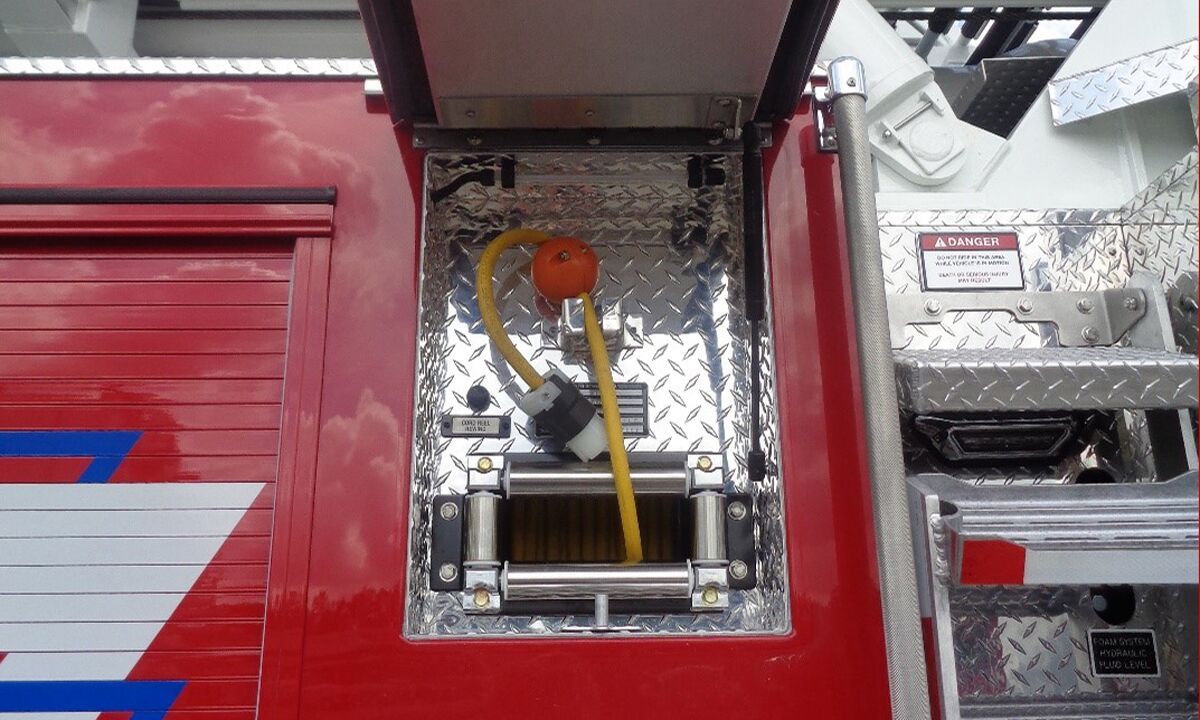

Electric cord reels or supplied air reels
Exterior cab access EMS compartments

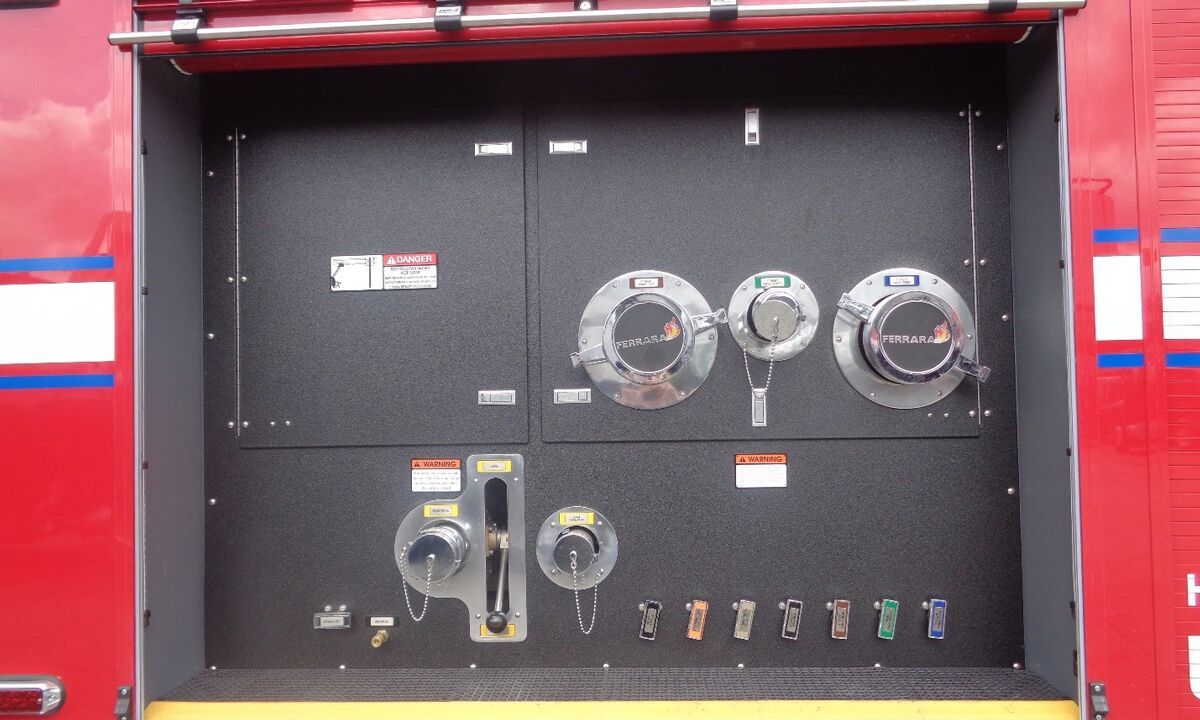

F-Shield, anodized aluminum or stainless steel pump panel treatments

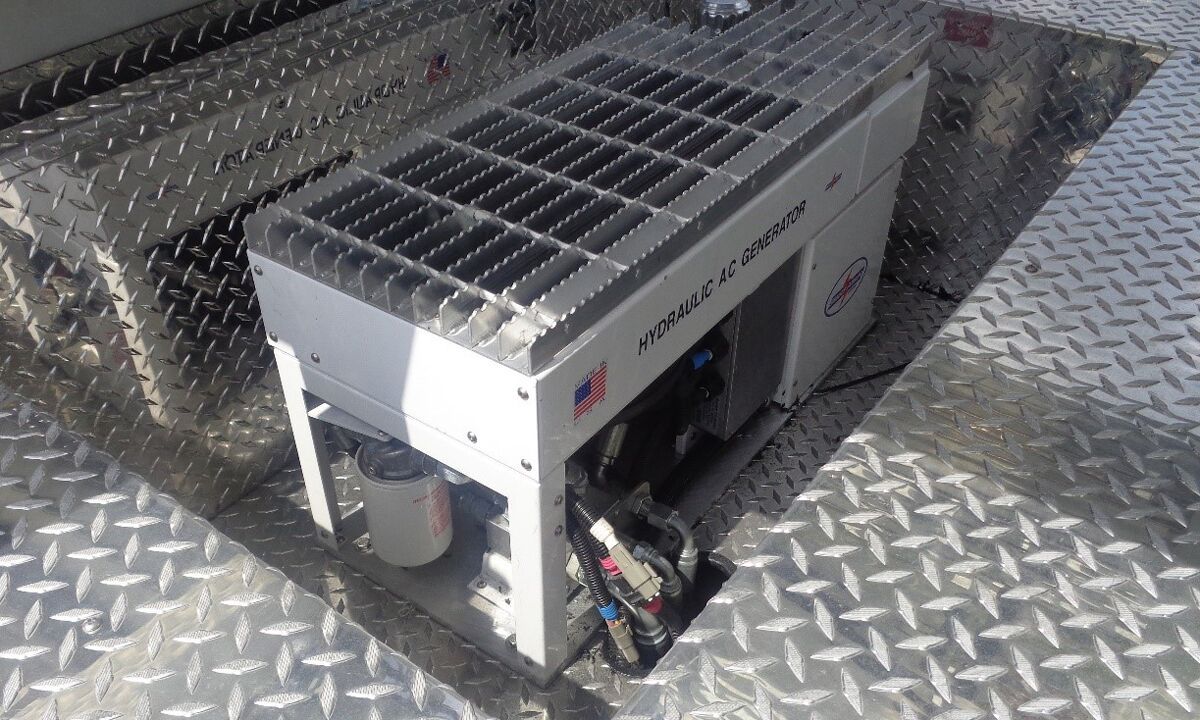

Hydraulic Generator System: Smart Power, Harrison, or Onan

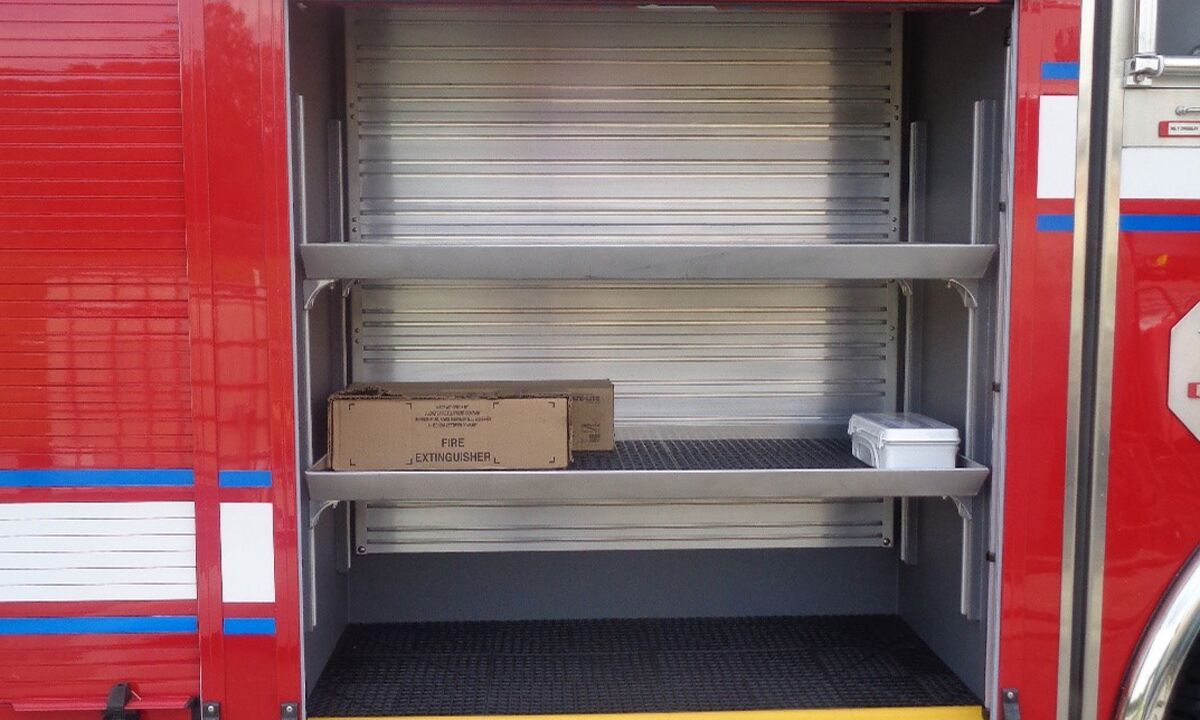

Multiple compartment storage systems

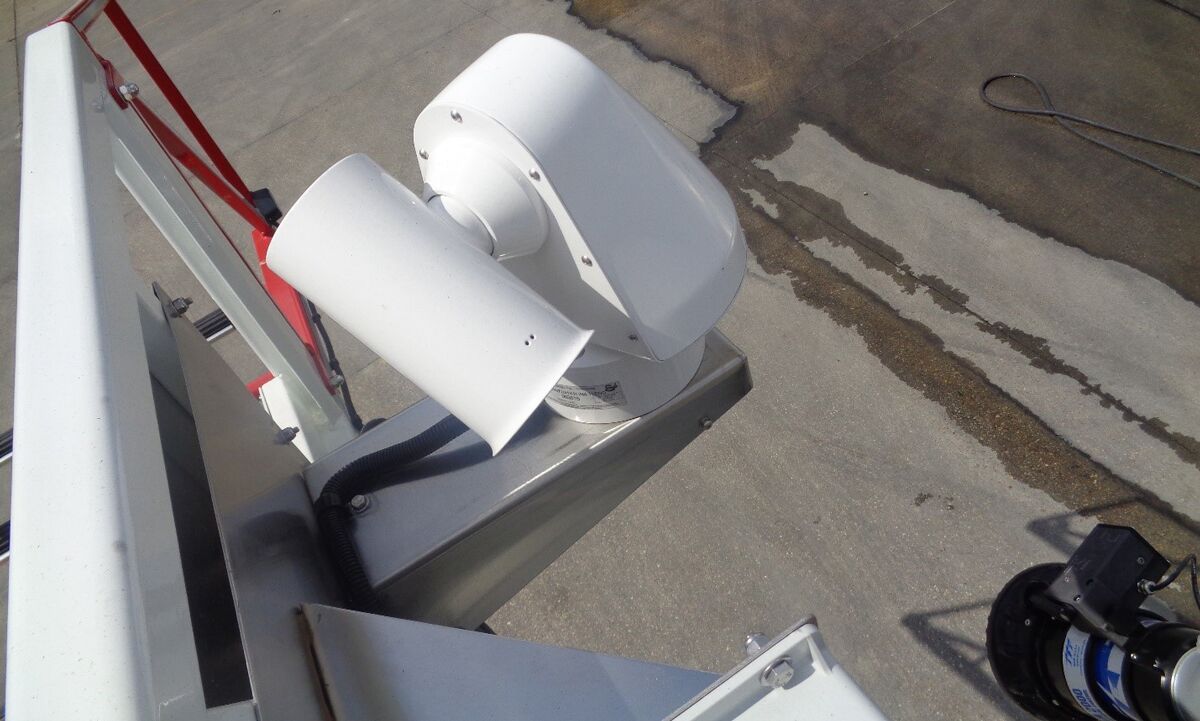

Sidewinder aerial thermal imaging camera system

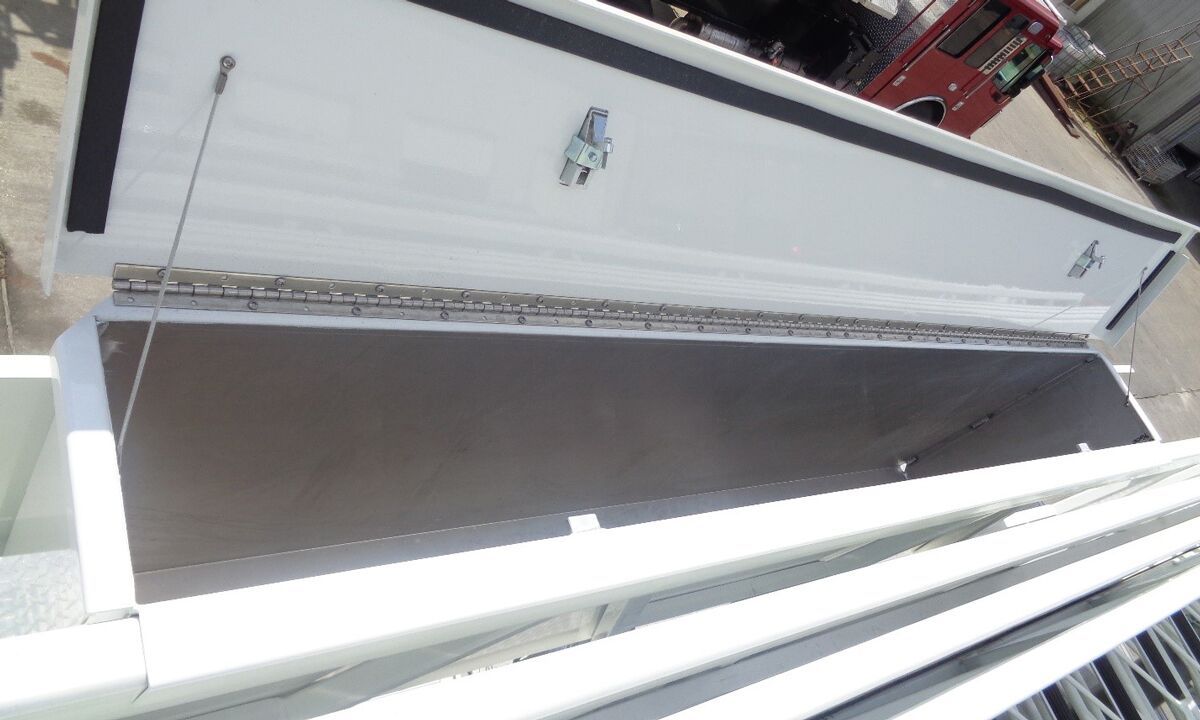

Stokes basket storage
Specifications
| Chassis | Inferno 600 hp |
| Body | Extruded Aluminum |
| Compartments | Driver side full height compartments, 12” deep over wheels; 26” deep behind wheels Right side LDH hose bed |
| Pump | US Fire Pump 5500 gpm High-Velocity Pump (HVP) in cast iron, cast bronze or stainless steel construction with pressurized lubrication system |
| Tank Size | 300 gallon foam tank |
| Foam System | FoamPro AccuMax 3300 series multi-point direct-injection system |
| Ladder and Reach | 4-section heavy-duty mid-mount aerial 100’ vertical reach at 72° and 94’ horizontal reach at 0° |
| Rated Load Capacity | 5000 GPM waterway |
| Nozzles | Williams Ranger 3 Plus, Elkhart Magnum or Akron Renegade |
| Warranty | Cab structural and body structural is 10 year or 100,000 miles |
| Brochure | Download |
