Heavy Duty 57 Ladder
Ferrara’s HD-57 Ladder Fire Truck provides an elevated master stream with a heavy-duty aerial ladder with 500 pound tip load. This entry-level aerial product can be configured as a traditional aerial or built on a short, pumper-style 198” wheelbase using a 54” medium cab. The HD-57 ladder fire truck incorporates the same safety features as larger Ferrara aerials, including rotation interlock, cab/body collision interlock, retraction safety interlock, LED rung lighting, and an electric actuated positional waterway controlled from the turntable.
Features and Options

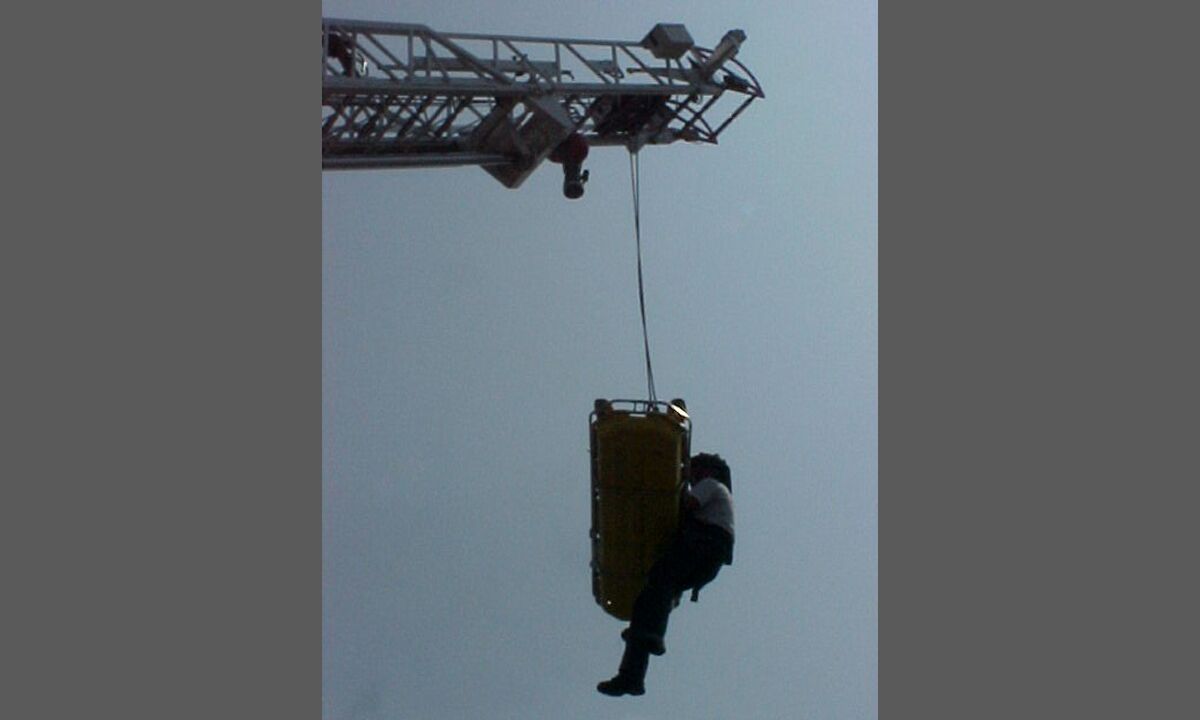

Use our optional 500 pound capacity Rope Rescue Pulley system to safely and easily perform high angle rescue operations.

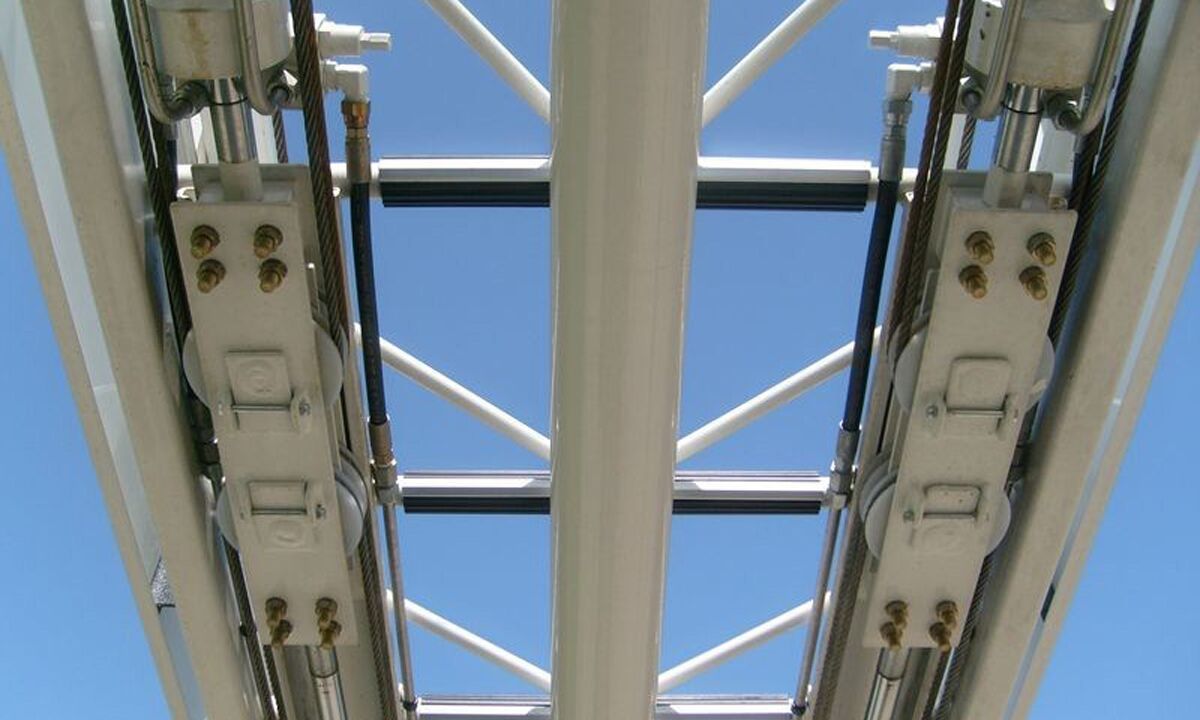

Extension/retraction is smooth and rapid with our dual Siamese extension cylinders. Why settle for 2 extension cylinders when you can have 4?

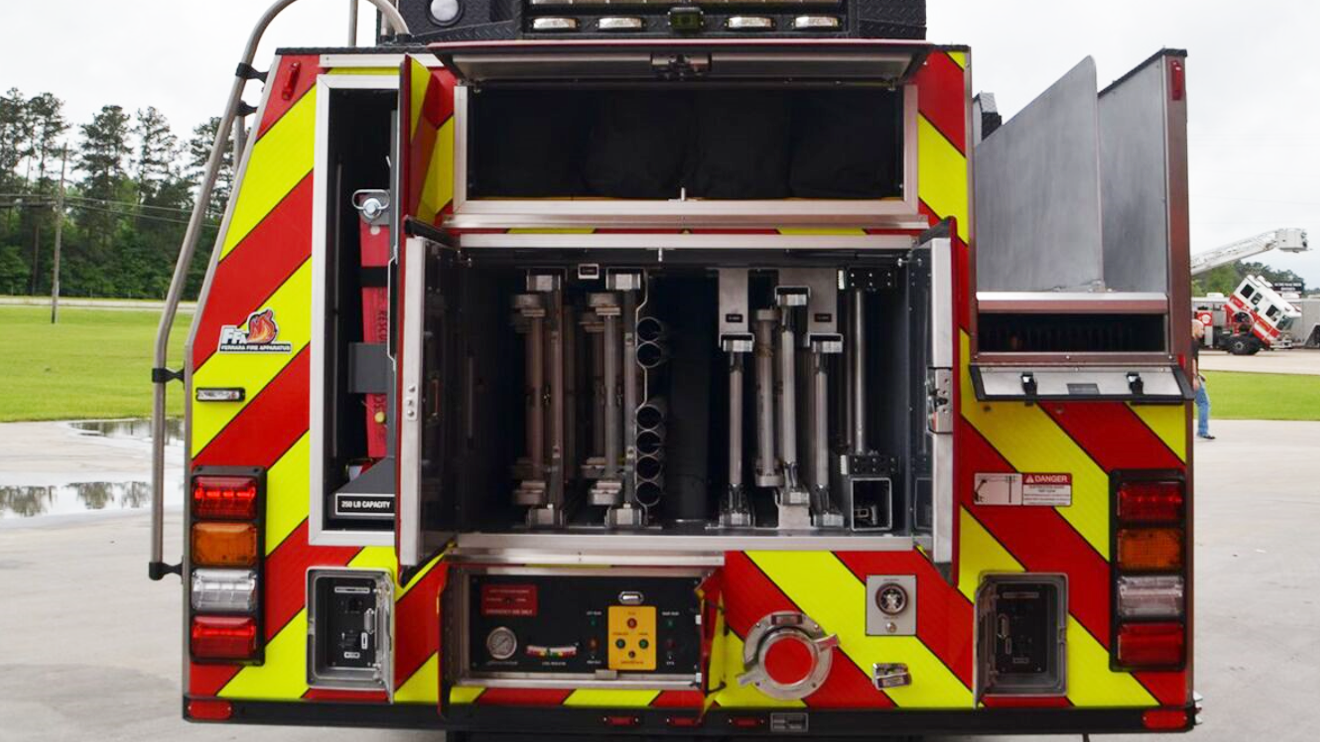

Max out your compartment space with our HD-77 MVP Rescue Ladder. Over 250 cubic feet of usable storage space plus over 150’ of ground ladders in the rear torque box opening. The right side EZ-Stack hose bed can carry 1000’ x 5” and 400’ x 2-1/2”.

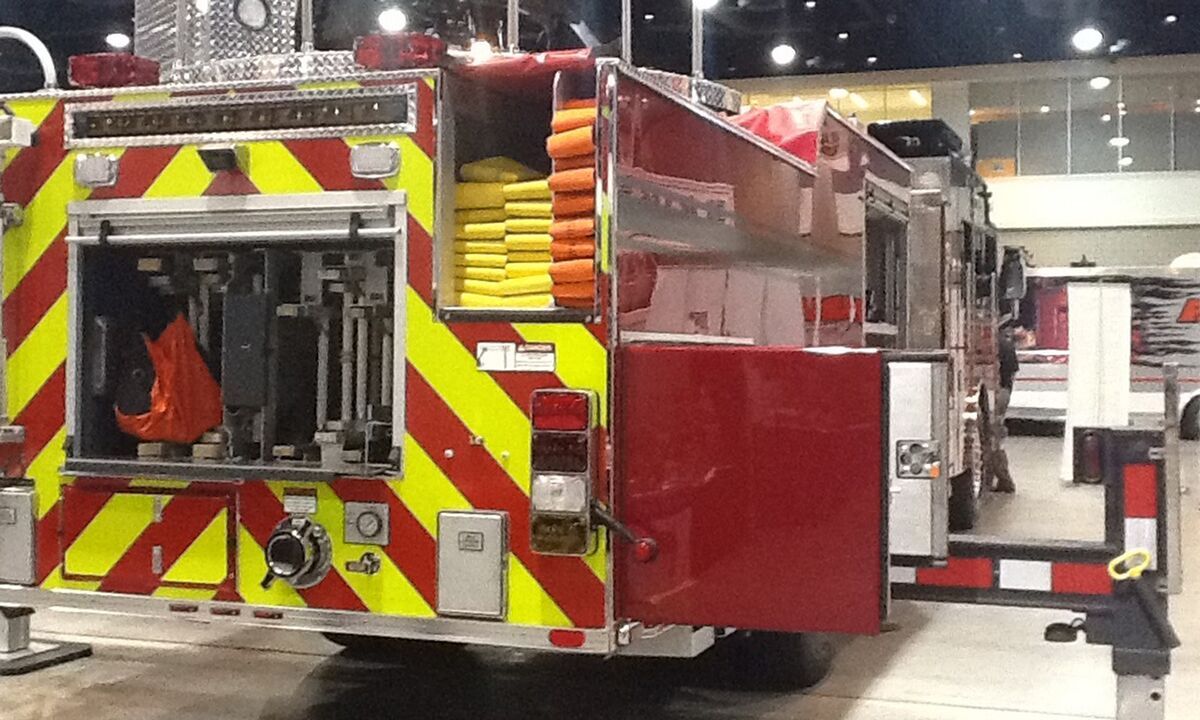

Our most popular body style, available on all Ferrara aerial ladders, feature driver side full height x 24” deep compartments, right side EZ-Stack hose bed with 1000’ x 5” LDH + 400’ x 2½” and right side full height compartment ahead of the wheels.

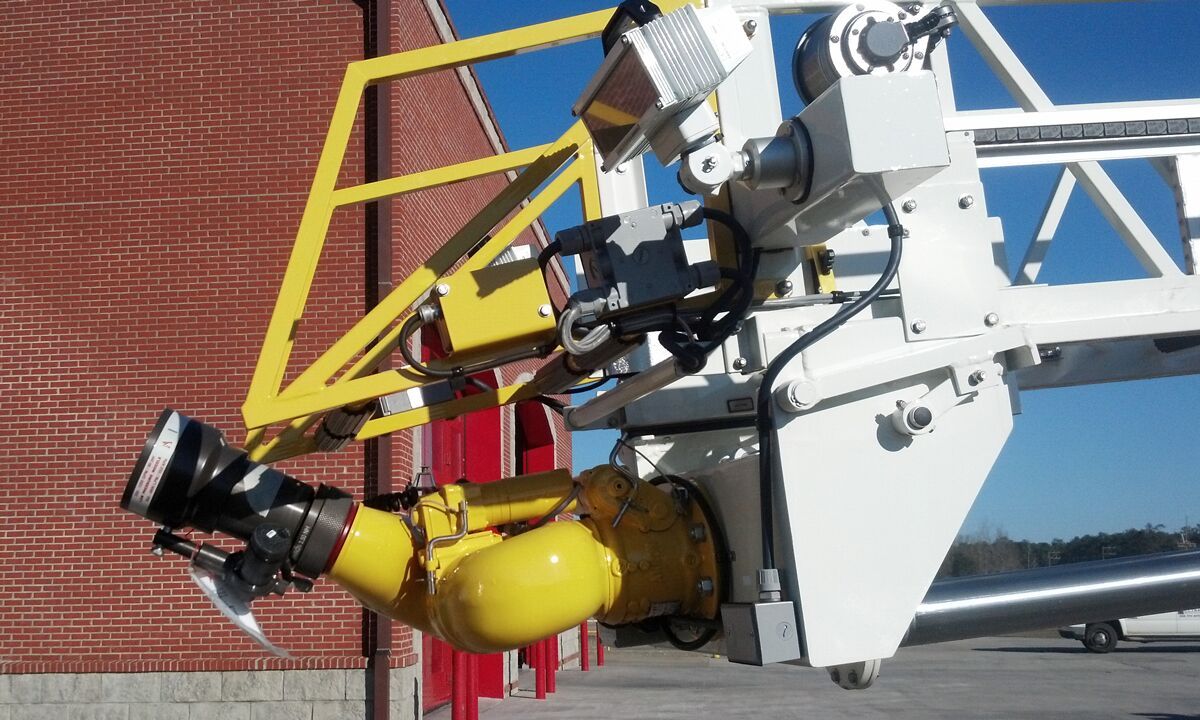

Quickly put out a fire in an attic or upper void area with our optional 165 vertical travel monitor. This allows you to flow a master stream at the ladder’s rated capacity up to 30 degrees above horizontal.
Save set up time and stop guessing where the auxiliary ground pads should be placed. We offer an optional recessed magnet in the auxiliary pad, allowing you to connect to the stabilizer foot pad prior to deployment.
All sheaves are fully enclosed, so you don’t have to worry about getting PPE or other gear caught between the cable and pulley.

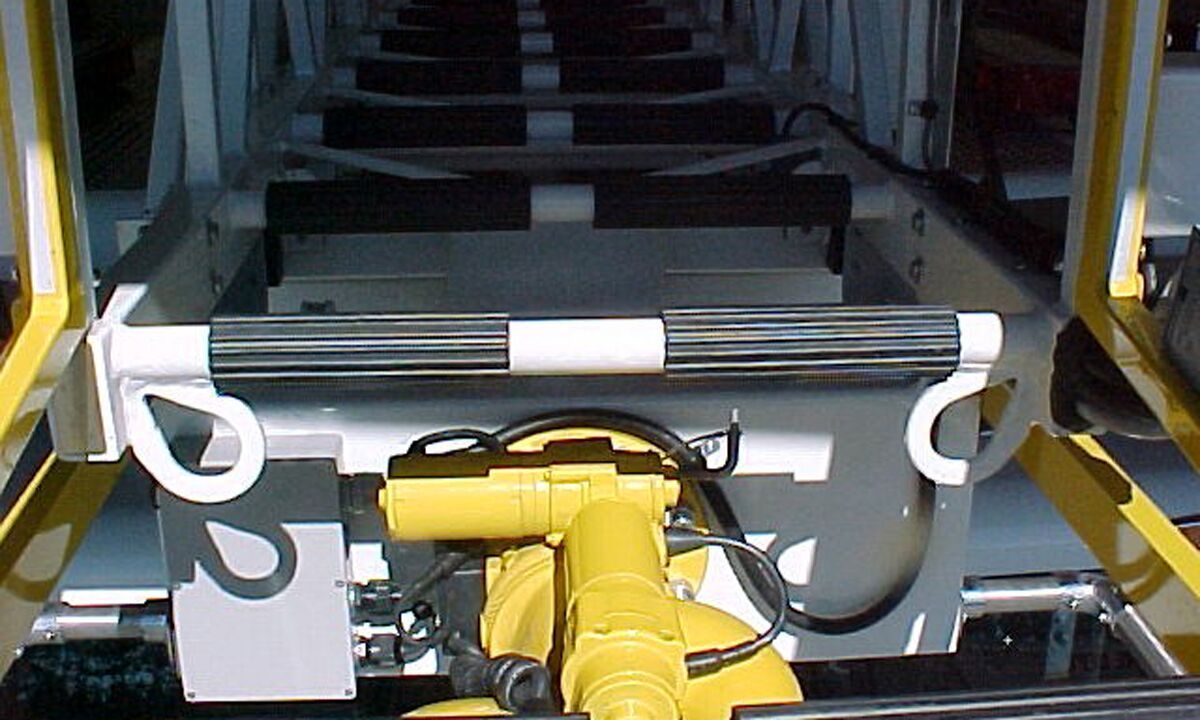

Standard equipment on all Ferrara aerials is a pair of load lifting eyes at the ladder tip. Rated at 500 pounds as a pair, they give you added rescue capability.

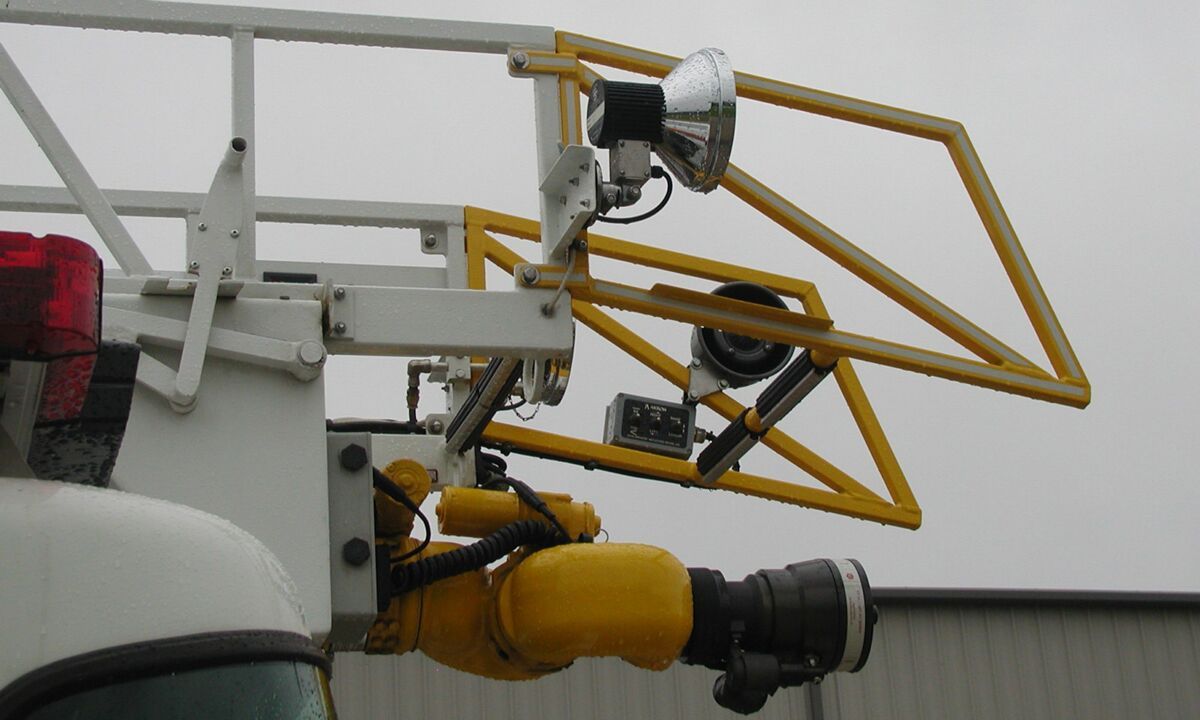

Standard on all Ferrara aerial ladders is an 11 degree angled, bolt-on egress section. The downward angle allows for easy transition to a window or roof. And because it’s bolt-on, is easily replaced if ever damaged.
Supply a standpipe without disconnecting the nozzle on the aerial monitor with our optional 2-1/2” discharge at the ladder tip.

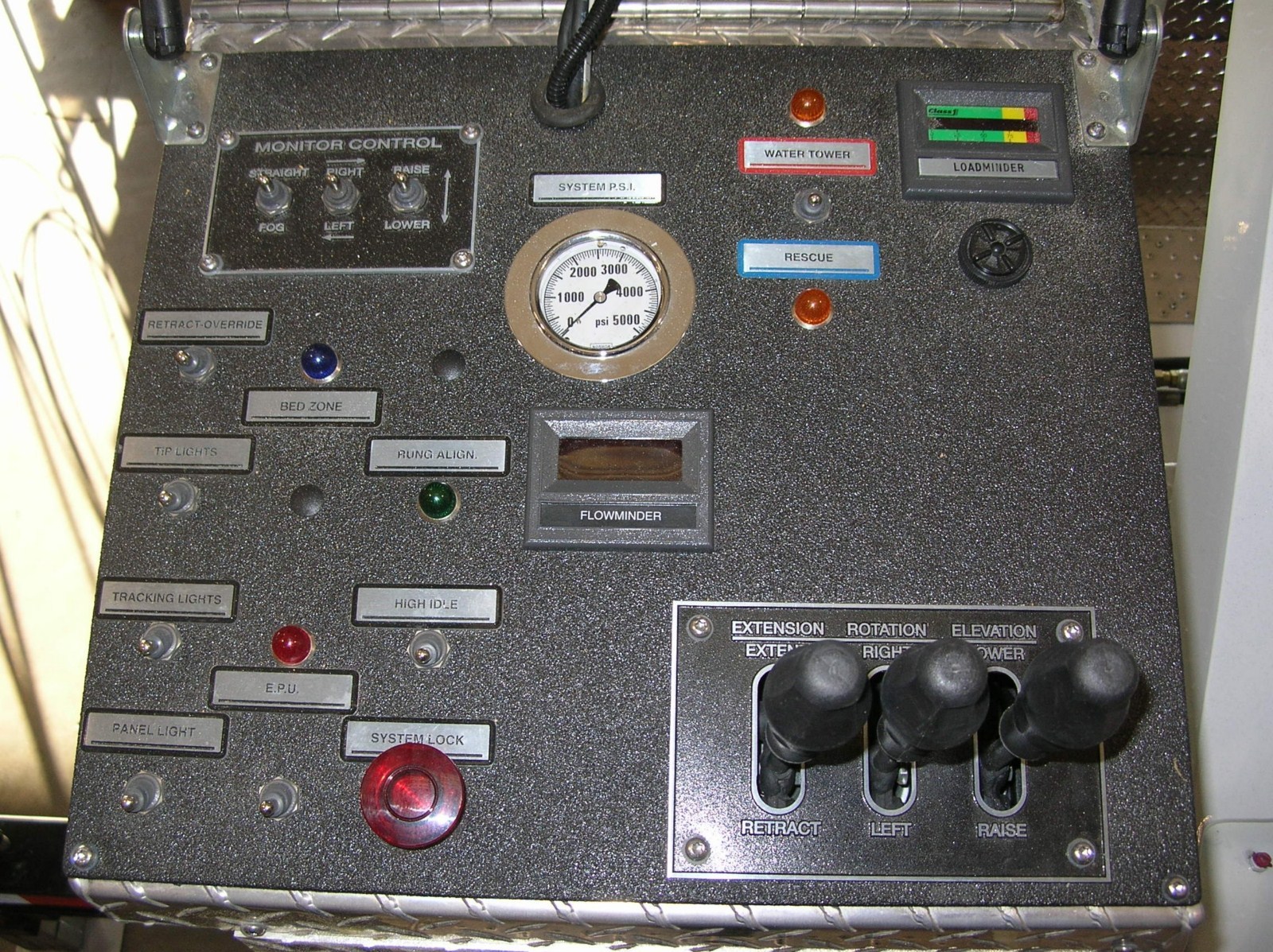

The turntable control console has a clean design with easy to find and read instruments. The ladder controls are direct hydraulic, requiring no manual overrides.

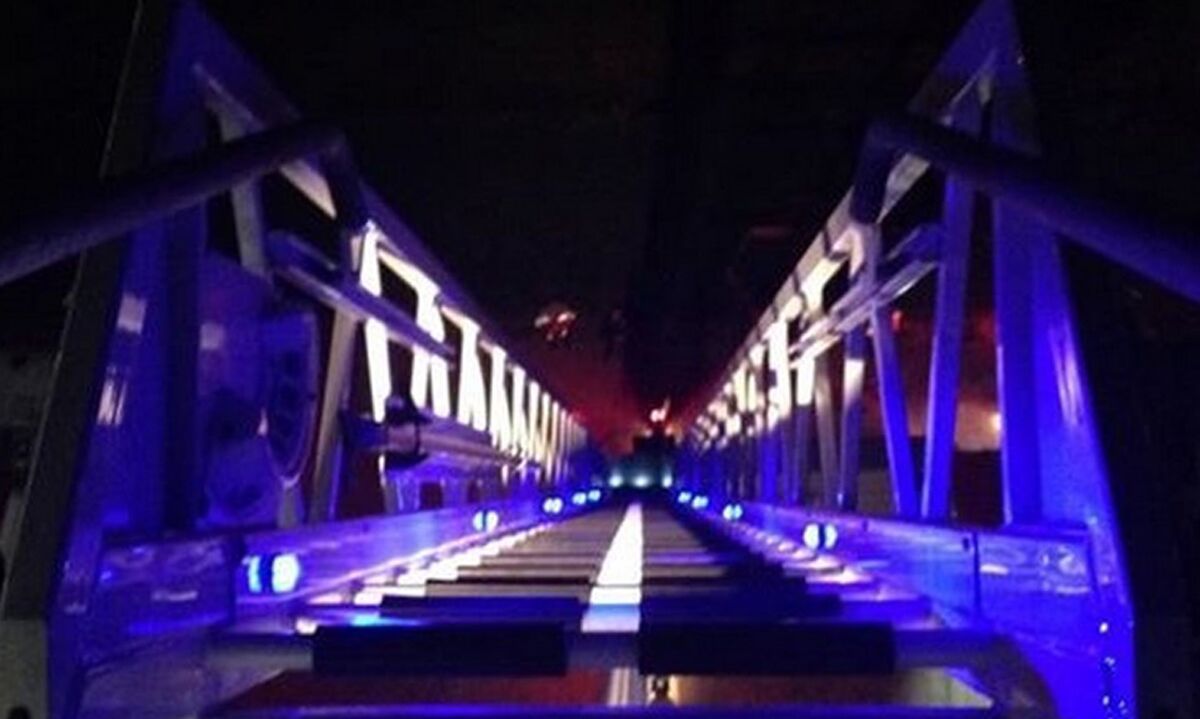

Well-lit ladder rungs for safe and easy night operations
Specifications
| Chassis | Cinder and Igniter up to 450hp Inferno up to 600hp Ultra up to 500hp |
| Body | Extruded aluminum – available with quint or pumper body styles |
| Compartments | Quint 1: Left side full height x 24” deep; Right side full height w/EZ-Stack hose bed Quint 2: Left and right side full height 24” deep lower/12” deep upper w/hose chutes MVP Rescue Ladder: 6 compts left, 4 compts right plus EZ-Stack hose bed Truck: Left and right side full height, 24” deep lower/transverse upper ahead of aerial |
| Ladder Storage | 150’ to 156’ ground ladders enclosed in full length torque box |
| Pump | Up to 3000 gpm pump |
| Tank Size | Up to 750 gallons on single axle or 1000 gallons on tandem |
| Ladder and Reach | 2-section heavy duty rear mount aerial with – 8° to +72° operational envelope Over 180° rotation at – 8° 57’ vertical reach at 72° and 52’ horizontal reach at 0° 34’ vertical and 42’ horizontal reach at 30° |
| Rated Load Capacity | 500 pounds flowing 1250 GPM Up to 1250 pounds distributed + 500 pounds at the tip while flowing 1250 GPM No restrictions on aerial or monitor movement or placement while flowing 1250 GPM |
| Warranty | 10 year cab and body structural 25 year aerial structural 10 year waterway and waterway seals 15 year torque box & stabilizer |
