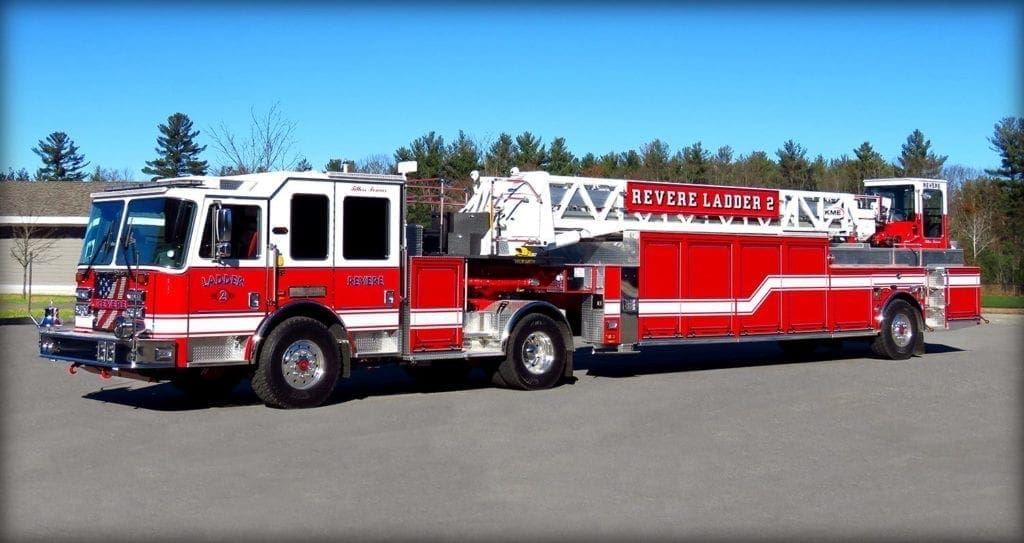

KME Severe Service 101′ AerialCat Ladder Fire Truck to Revere Fire Department

  • New Fire Apparatus
  • XMFD
  • Severe Service
  • Aerial
  • Red
  • Revere
  • Revere Fire Department
  • Linus Murphy

Congratulations to Revere Fire Department on their new KME Severe Service 101′ AerialCat Ladder Fire Truck. Some more stats about this vehicle below!

Chassis:

  • 96″ Severe Service XMFD with 10″ Raised Roof

Aerial:

  • 101′ AerialCat Ladder
  • 94′ Horizontal Reach
  • 2.5:1 Structural Safety Factor
  • 500lb. Unrestricted Wet/Dry Tipload Rating
  • 14′ Outrigger Stabilizer Stance
  • -7 Degree Low to 80 Degree High Elevation
  • Photo Luminescent Rung Covers
  • Pinable Waterway
  • Store Front Blitz
  • 90-Degree Jack Knife Capability

Dimensions:

  • 696″ Overall Length
  • 151″ Tractor Wheelbase
  • 343″ Trailer Wheelbase
  • 134″ Overall Height

Drive Train:

  • Cummins ISX12 500 HP Engine
  • Allison 4000 EVS Transmission
