KME Severe Service XMFD 96″ W Tuff Truck Aerial Fire Truck to Salisbury

  • New Fire Apparatus
  • XMFD
  • Severe Service
  • Aerial
  • Red
  • Salisbury
  • Salisbury Fire Department
  • Linus Murphy

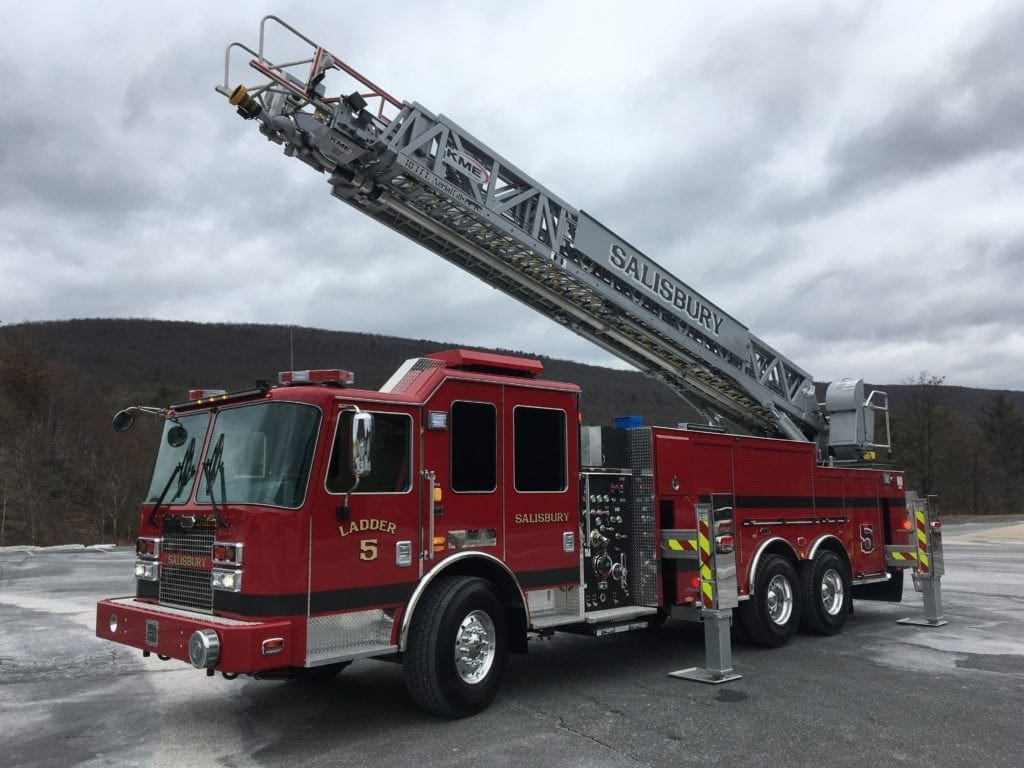

Congratulations to Salisbury on their new KME Severe Service XMFD 96″ W Tuff Truck Aerial Fire Truck. Some more stats about this vehicle below!

Chassis:

  • 96″ Severe Service XMFD Cab with 10″ Raised Roof
  • Galvanized Frame Rails

Body:

  • 96″ WIde Tuff Truck Body Constructed of 3/16″ Aluminum
  • ISO Ground Ladder Compliment
  • ROM Roll-up Doors with Painted Finish

Aerial:

  • 103′ 4 Section AerialCat Ladder
  • 94′ Horizontal Reach
  • 50 mph Wind Load Rating
  • 1/4″ Ice on Electric Range
  • 2.5 to 1 Structural Safety Factor
  • 500lb. Dry Tip Load
  • 500lb Wet Tip Load Flowing 1500 gpm
  • Two (2) Sets of H Style Stabilizers with 12′ Stance
  • Deep Penetrating Stabilizers, 11° Leveling Capability

Pump and Tank:

  • 650 Gallon UPF PolyIIE Water Tank
  • Hale Qmax XS 1500 gpm Single Stage Pump

Drive Train:

  • Cummins ISX 12 500 HP Engine
  • Allison 4000 EVS Transmission
  • Hendrickson Ultimaxx Suspension

Electrical

  • FRC 360° Camera System
  • Class 1 Multiplex System
  • HiViz FireTech and FRC LED Scene Lighting Package
